About Series 300
Versatile! Interchangeable! Flexible Configurations! Our most popular series allows you to mix and match end fittings (barbed, NPT, and foot valve styles) to create the ideal valve for your low pressure, low flow project. You may also use the same configuration on both ends. Internally, modular solutions incorporate check valve cartridge model #150 or #160 to eliminate leak prone adapter by combining end fittings and check valve into one part. For pump applications, Model #315 (foot/filtering valve) is easily paired with any Series 300 end fitting. At Smart Products USA, all of our valves are customizable by plastic body material, o-ring material, and opening spring pressure to meet specific application criteria.
Contact Us
Drop us a line and we’ll get back to you quickly! Fill out the form or call 1-800-338-0404 for more information.

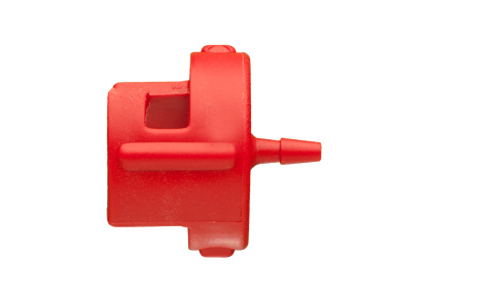

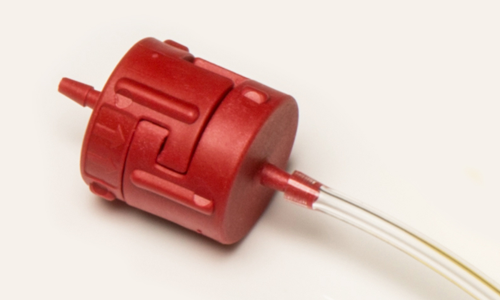

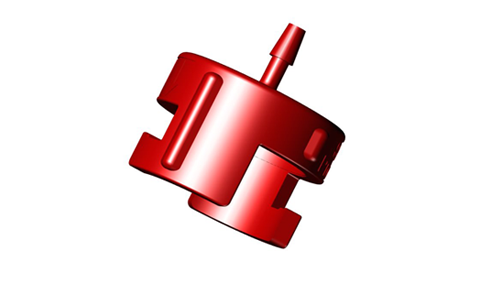

Model #300
Barbed: 1/16"
Fits Tubing I.D.: 1/16" (1.58mm)
Body Materials: Polypropylene, Nylon, PVDF, Ultem®, ABS
O-ring Options: Buna-N, EPDM, Viton®, Silicone, Fluorosilicone, Aflas®, Kalrez®. (Note: Aflas® & Kalrez® are not available with springs less than 0.5 PSI)
Spring Pressure: 0.11 - 20 PSI

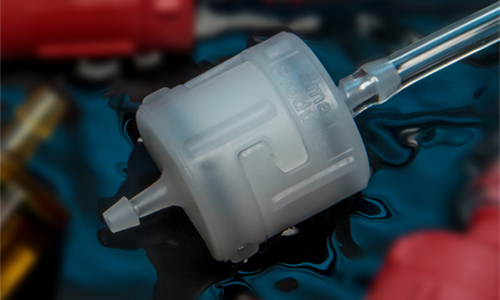

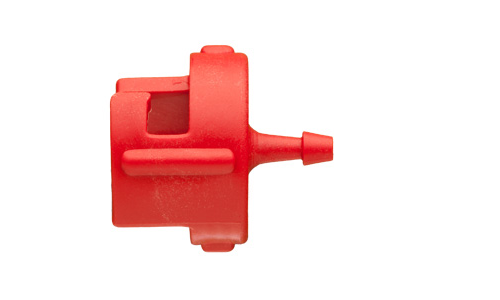

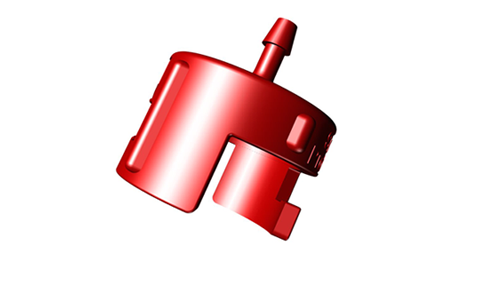

Model #301
Barbed: 3/32"
Fits Tubing I.D.: 3/32" (2.38mm)
Body Materials: Polypropylene, Nylon, PVDF, Ultem®, ABS
O-ring Options: Buna-N, EPDM, Viton®, Silicone, Fluorosilicone, Aflas®, Kalrez®. (Note: Aflas® & Kalrez® are not available with springs less than 0.5 PSI)
Spring Pressure: 0.11 - 20 PSI

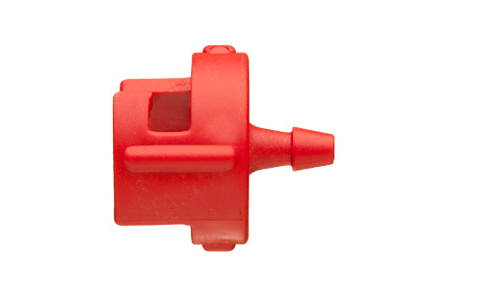

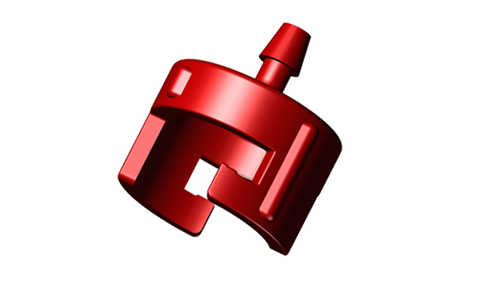

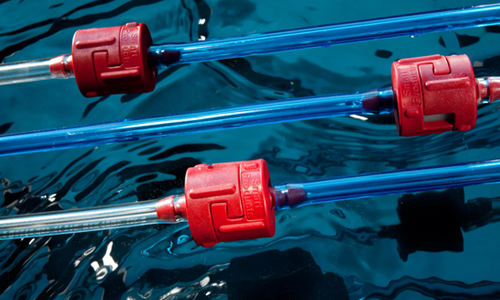

Model #302
Barbed: 1/8"
Fits Tubing I.D.: 1/8" (3.18mm)
Body Materials: Polypropylene, Nylon, PVDF, Ultem®, ABS
O-ring Options: Buna-N, EPDM, Viton®, Silicone, Fluorosilicone, Aflas®, Kalrez®. (Note: Aflas® & Kalrez® are not available with springs less than 0.5 PSI)
Spring Pressure: 0.11 - 20 PSI

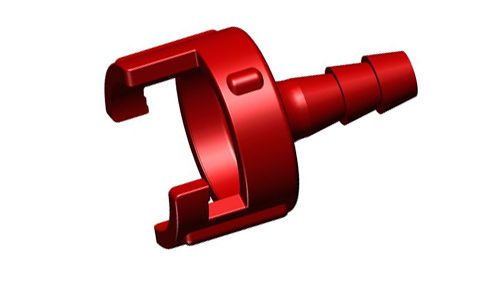

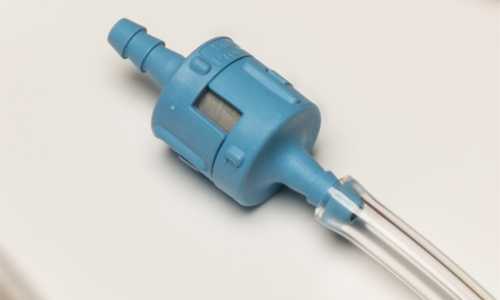

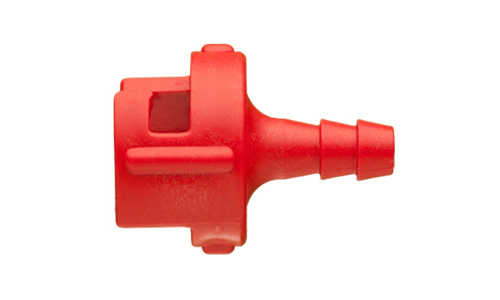

Model #303
Barbed: 3/16"
Fits Tubing I.D.: 3/16" (4.76mm)
Body Materials: Polypropylene, Nylon, PVDF, Ultem®, ABS, Radel®
O-ring Options: Buna-N, EPDM, Viton®, Silicone, Fluorosilicone, Aflas®, Kalrez®. (Note: Aflas® & Kalrez® are not available with springs less than 0.5 PSI)
Spring Pressure: 0.11 - 20 PSI

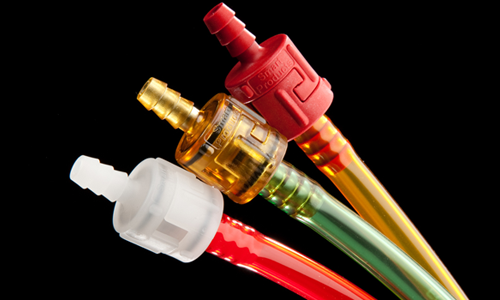

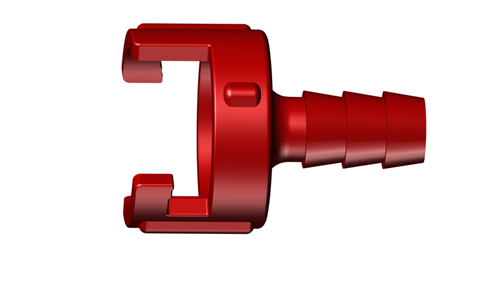

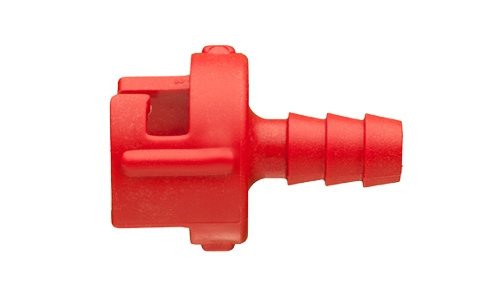

Model #304
Barbed: 1/4"
Fits Tubing I.D.: 1/4" (6.35mm)
Body Materials: Polypropylene, Nylon, PVDF, Ultem®, ABS, Radel®
O-ring Options: Buna-N, EPDM, Viton®, Silicone, Fluorosilicone, Aflas®, Kalrez®. (Note: Aflas® & Kalrez® are not available with springs less than 0.5 PSI)
Spring Pressure: 0.11 - 20 PSI

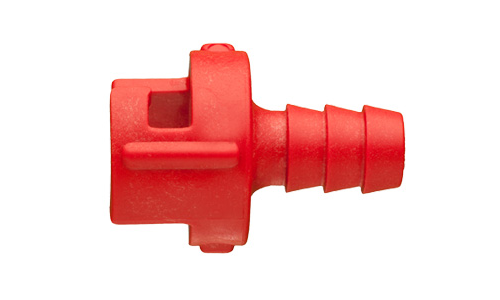

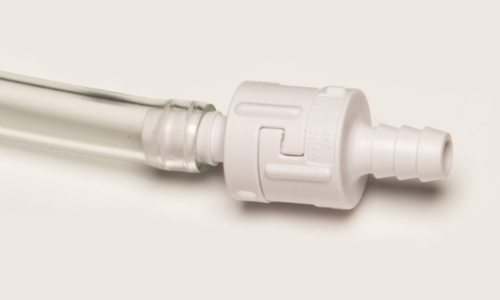

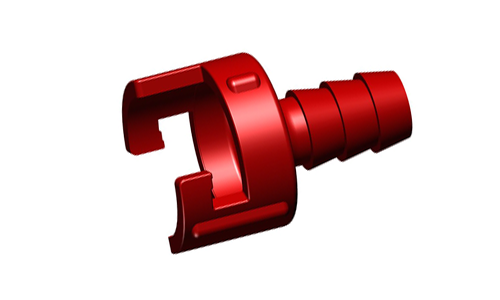

Model #305
Barbed: 5/16"
Fits Tubing I.D.: 5/16" (7.94mm)
Body Materials: Polypropylene, Nylon, PVDF, Ultem®, ABS
O-ring Options: Buna-N, EPDM, Viton®, Silicone, Fluorosilicone, Aflas®, Kalrez®. (Note: Aflas® & Kalrez® are not available with springs less than 0.5 PSI)
Spring Pressure: 0.11 - 20 PSI

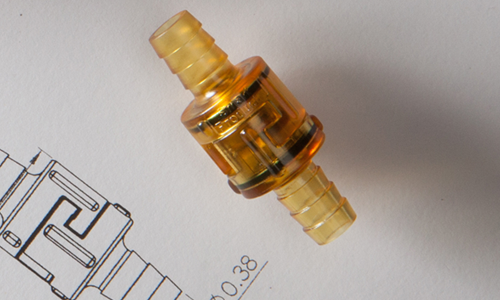

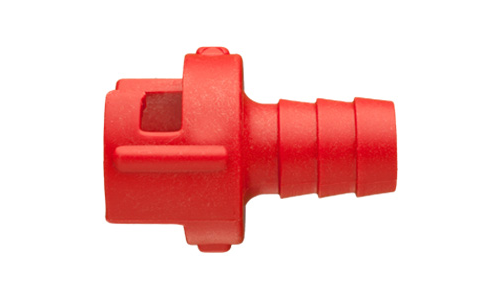

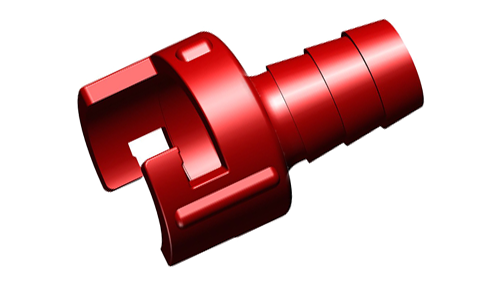

Model #306
Barbed: 3/8"
Fits Tubing I.D.: 3/8" (9.525mm)
Body Materials: Polypropylene, Nylon, PVDF, Ultem®, ABS
O-ring Options: Buna-N, EPDM, Viton®, Silicone, Fluorosilicone, Aflas®, Kalrez®. (Note: Aflas® & Kalrez® are not available with springs less than 0.5 PSI)
Spring Pressure: 0.11 - 20 PSI

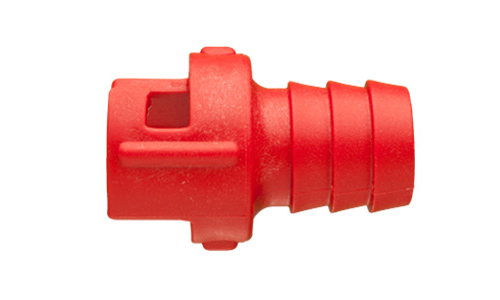

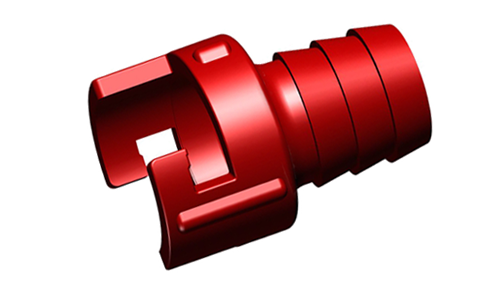

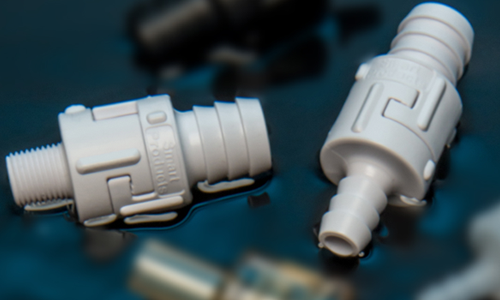

Model #308
Barbed: 1/2"
Fits Tubing I.D.: 1/2" (12.70mm)
Body Materials: Polypropylene, Nylon, PVDF, Ultem®, ABS
O-ring Options: Buna-N, EPDM, Viton®, Silicone, Fluorosilicone, Aflas®, Kalrez®. (Note: Aflas® & Kalrez® are not available with springs less than 0.5 PSI)
Spring Pressure: 0.11 - 20 PSI

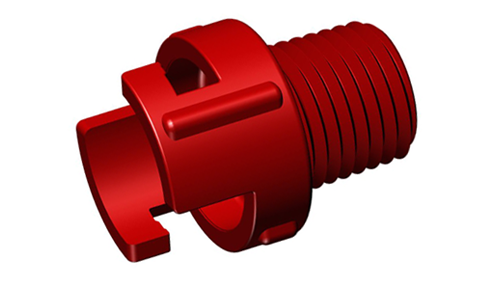

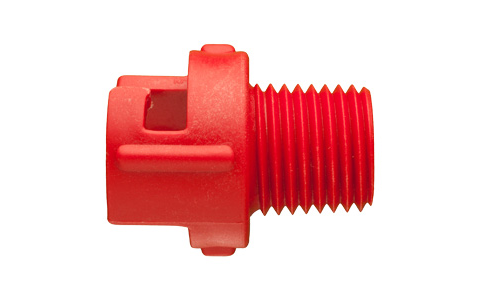

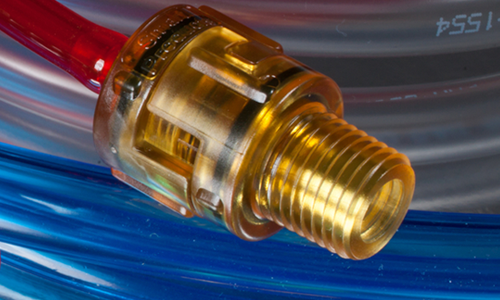

Model #312
NPT Size: 1/4"
Body Materials: Polypropylene, Nylon, PVDF, Ultem®, ABS
O-ring Options: Buna-N, EPDM, Viton®, Silicone, Fluorosilicone, Aflas®, Kalrez®. (Note: Aflas® & Kalrez® are not available with springs less than 0.5 PSI)
Spring Pressure: 0.11 - 20 PSI

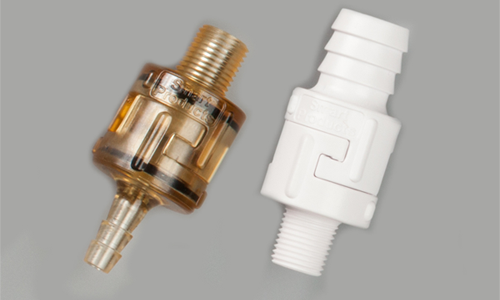

Model #314
Barbed: 1/8"
Body Materials: Polypropylene, Nylon, PVDF, Ultem®, ABS, Radel®
O-ring Options: Buna-N, EPDM, Viton®, Silicone, Fluorosilicone, Aflas®, Kalrez®. (Note: Aflas® & Kalrez® are not available with springs less than 0.5 PSI)
Spring Pressure: 0.11 - 20 PSI

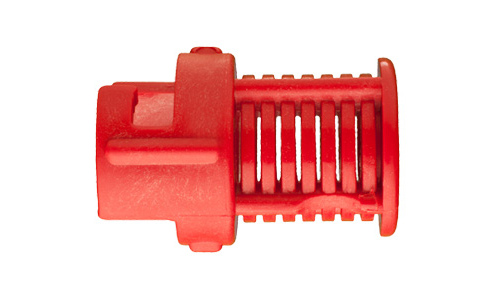

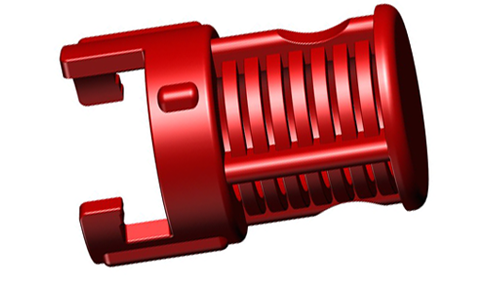

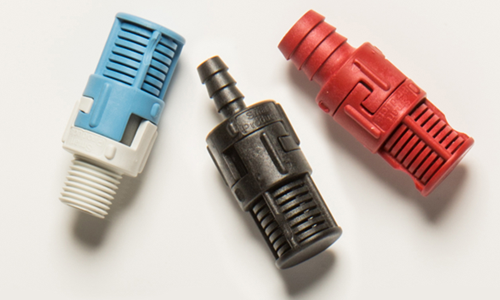

Model #315
Foot / Filtering Valve
Body Materials: Polypropylene, Nylon, PVDF, Ultem®, ABS
O-ring Options: Buna-N, EPDM, Viton®, Silicone, Fluorosilicone, Aflas®, Kalrez®. (Note: Aflas® & Kalrez® are not available with springs less than 0.5 PSI)
Spring Pressure: 0.11 - 20 PSI

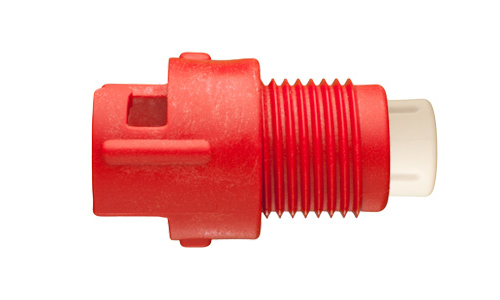

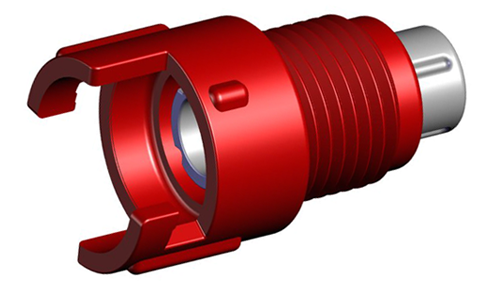

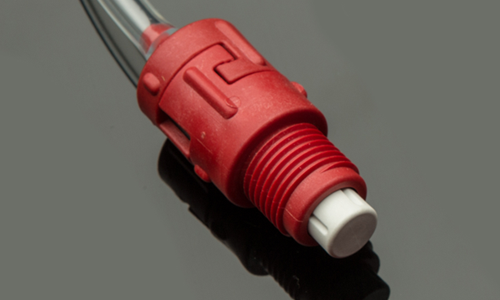

Model #330
Manual Relief Control Valve
Body Materials: Polypropylene
O-ring Options: O-ring Options: Buna-N, EPDM, Viton®, Silicone, Fluorosilicone, Aflas®, Kalrez®.
Provides pressure or vacuum relief at the touch of a button. Threaded for panel mounting; 5/8-18 thread pitch

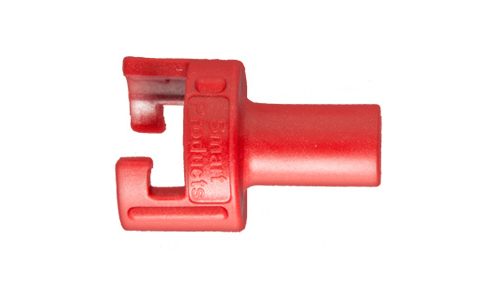

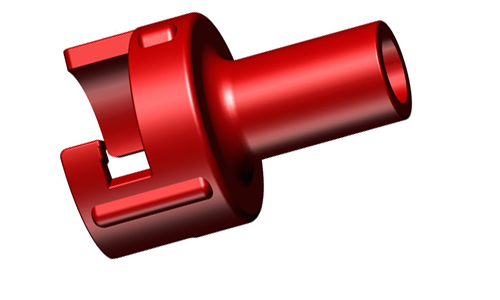

Model #361
Smooth Stem: 3/8"
Fits Tubing I.D.: 3/8"
Body Materials: Polypropylene, Nylon, PVDF, Ultem®, ABS, Radel®
O-ring Options: Buna-N, EPDM, Viton®, Silicone, Fluorosilicone, Aflas®, Kalrez®. (Note: Aflas® & Kalrez® are not available with springs less than 0.5 PSI)
Spring Pressure: 0.11 - 20 PSI
Note: Dimensions on this page are based on Polypropylene material. These are typically held to a +/- 0.005″ tolerance. Keep in mind different plastics have different shrink rates and may vary from these tolerances. Our products are subject to continuous improvement. To achieve this goal, Smart Products reserves the right to change features, processes, materials, testing and other specifications as necessary. All plastic body material recommendations are based on standard corrosion resistant and compatibility guides. Smart Products strongly recommends that customers test products for each application-specific use. Buyer is urged to test and investigate the compatibility of any substance used with our products prior to actual use. Seller will not be responsible for the failure of Buyer to thoroughly test and investigate the compatibility of the substances used with our products and the fitness of the products for its particular use or application.
